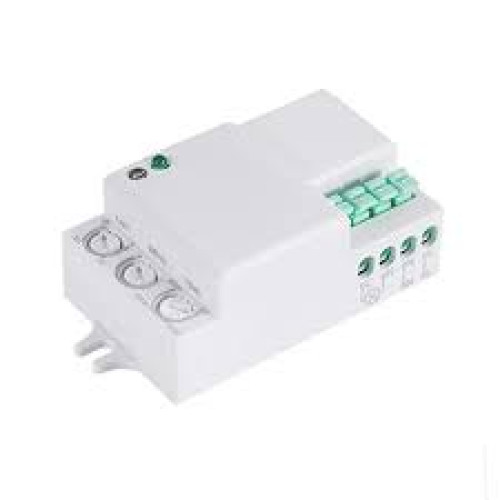

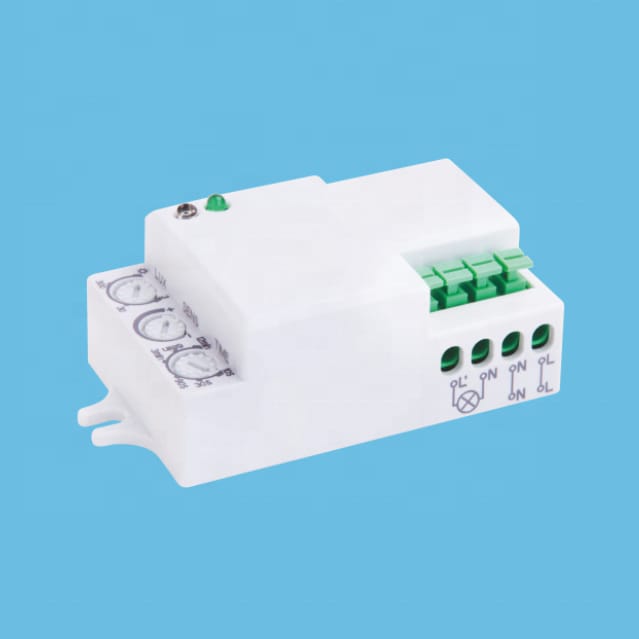

ST701H compact microwave motion sensor

The ST701H is a compact microwave motion sensor designed for automatic lighting control in various indoor environment. This sensor utilizes high-frequency electromagnetic waves (5.8 GHz) to detect motion, offering advantages over traditional passive infrared (PIR) sensors, such as the ability to detect movement through walls, glass, and other obstacles.​
Best Suppliers

Product not refundable. Shipping and GST included

 Key Specifications
Detection Angle: 180° or 360° (adjustable)

Detection Distance:

Wall Mount: 5–15 meters

Ceiling Mount: 1–8 meters (radius), adjustable

Time Delay: Adjustable from 10 seconds to 12 minutes

Ambient Light Sensitivity: Adjustable from <3 to 2000 lux

Power Supply: 220–240V AC, 50/60Hz

Rated Load:

Incandescent Bulbs: Up to 1200W

LED/Energy-Saving Bulbs: Up to 300W

Power Consumption: Approximately 0.9W

Installation Height:

Wall Mount: 1.5–3.5 meters

Ceiling Mount: 2–8 meters

Material: UV-resistant PC plastic

Certifications: CE (including LVD and EMC)

Features
Day/Night Detection: Automatically detects motion both day and night, with sensitivity adjustments to suit ambient light conditions.

Adjustable Sensitivity: Detection range can be fine-tuned from 2 to 16 meters, accommodating various room sizes.

Extended Time Delay: The time delay resets with each new motion detection, ensuring lights remain on as long as needed.

Versatile Installation: Suitable for wall or ceiling mounting, making it ideal for hallways, kitchens, staircases, and storage areas.
